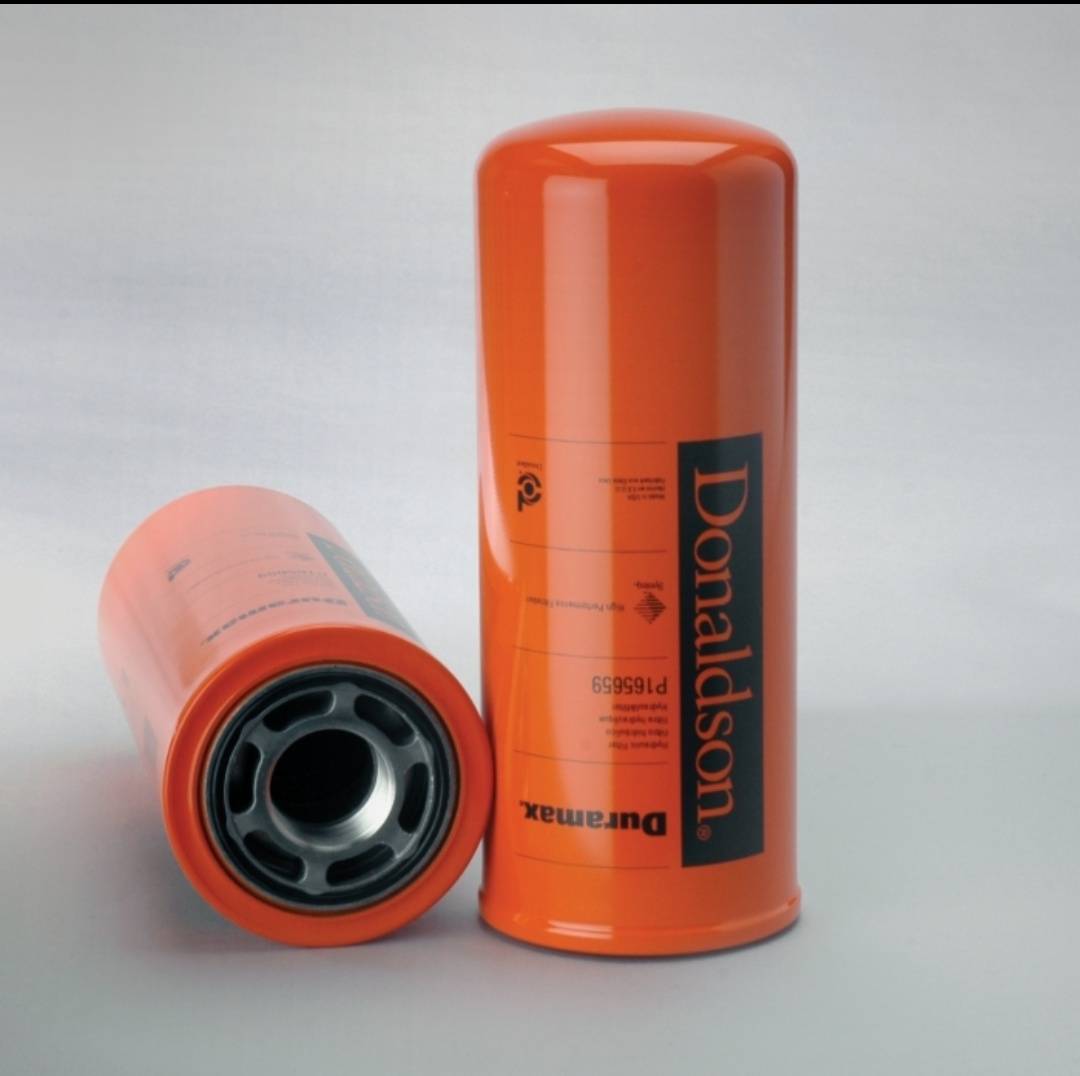

Donaldson Hydraulic Filter – Part No. P165659
The Donaldson P165659 is a premium spin-on hydraulic filter from the Duramax® series, engineered for demanding applications such as construction, mining, and heavy equipment. Designed to fit HMK05 and HMK25 filter assemblies, it provides reliable protection by effectively removing contaminants from hydraulic fluid.
Key Features:
Advanced Filtration Media
Utilizes Synteq™ XP™ synthetic media rated Beta 1000 at 11 microns and Beta 2 at 4 microns, ensuring superior contaminant capture and longer service life.
Heavy-Duty Construction
Features a steel housing and die-cast aluminum top plate to withstand high-pressure hydraulic environments.
Leak-Resistant Seal
Equipped with a precision O-ring seal between the head and canister to prevent leaks and ensure a secure fit.
High Flow Capacity
Supports flow rates from 50 to 100 gallons per minute, suitable for high-demand hydraulic systems.
Specifications:
Outer Diameter: 121 mm (4.76 in)
Overall Height: 295 mm (11.63 in)
Thread Size: 1 3/4"-12 UN
Gasket Outer Diameter: 86 mm (3.39 in)
Gasket Inner Diameter: 79 mm (3.11 in)
Pressure Rating: Up to 350 psi
Operating Temperature Range: –20 °C to 121 °C (–4 °F to 250 °F)
Seal Material: Nitrile (Buna-N®)
Filter Media: Synteq™ XP™ Synthetic
Micron Ratings: 11 µm (Beta 1000) and 4 µm (Beta 2)
Flow Rate Range: 50–100 GPM
Typical Applications:
Hydraulic systems in excavators, loaders, backhoe loaders, and drilling equipment
Compatible with equipment from brands like John Deere, Case, New Holland, and Atlas Copco
Use Part No. P165659 to ensure consistent hydraulic system cleanliness, extend component life, and maintain reliable performance in tough operational environments.
The Donaldson P553000 is a high-quality, heavy-duty spin-on lube filter designed primarily for engines. It is a "full-flow" filter, meaning it processes all the oil as it circulates to protect critical engine components from wear.
Lube filter for L&T Komatsu PC300.
Lube filter for L&T Komatsu PC350.
OEM Part No
Authorised Donaldson distributor of Uttar Pradesh.
Authorised Donaldson distributor of Maharashtra.
Donaldson P537876 – Primary RadialSeal™ Air Filter
The Donaldson P537876 is a high-efficiency primary air filter designed for heavy-duty diesel engines. Featuring RadialSeal™ technology, it ensures a secure, leak-resistant seal even under heavy vibration, providing reliable protection for engine components.
Key Specifications:
Filter Type: Primary Air Filter
Style: RadialSeal™
Media Type: Cellulose
Outer Diameter: 282 mm (11.09 inches)
Inner Diameter: 148 mm (5.82 inches)
Length: 510 mm (20.08 inches)
Filtration Efficiency: 99.9%
Efficiency Test Standard: ISO 5011
Features:
RadialSeal™ Design: Provides a reliable, leak-resistant seal that remains secure even under heavy vibration.
High-Efficiency Cellulose Media: Ensures effective filtration across a wide range of heavy-duty engine applications.
Corrosion-Resistant Coated Steel Liners: Support the media during operation and help maximize airflow.
Pleatloc™ Feature: Ensures uniform pleat spacing and prevents media from bunching, promoting longer service life.
Applications:
The P537876 filter is suitable for various heavy-duty equipment and machinery, including:
John Deere 850D, 850D LC, 850J, 870 GP, 870G, 872 GP, 872G
New Holland TX62, TX63 combines
Hitachi 4459543, AT175223
Caterpillar 1525266
Volvo 11110022, 11110280
Sumitomo KSH0933
Case 275809A1, 87013225
Fleetguard AF25437
Baldwin RS3744
Fram CA8621
WIX 42803
Donaldson P502424 – Fuel Filter Water Separator Cartridge
The Donaldson P502424 is a high-efficiency fuel filter and water separator designed for diesel engine systems. It ensures clean fuel delivery by effectively removing contaminants and separating water from fuel, helping extend engine life and reduce downtime.
Specifications:
Type: Fuel Filter – Water Separator Cartridge
Media: Cellulose
Outer Diameter: 94.5 mm (3.72 inches)
Inner Diameter: 26 mm (1.02 inches)
Length: 193 mm (7.60 inches)
Efficiency: 99% @ 5 microns
Collapse Burst Pressure: 6.9 bar (100 psi)
Applications:
Commonly used in:
Hitachi Excavators (e.g., ZX200-3, ZX240-3, ZX330-3)
Isuzu Engines
John Deere Equipment
JCB and SANY Machines
Sumitomo Machinery
Fuel Filter
