Donaldson P537876 – Primary RadialSeal™ Air Filter The Donaldson P537876 is a high-efficiency primary air filter designed for heavy-duty diesel engines. Featuring RadialSeal™ technology, it ensures a secure, leak-resistant seal even under heavy vibration, providing reliable protection for engine components. Key Specifications: Filter Type: Primary Air Filter Style: RadialSeal™ Media Type: Cellulose Outer Diameter: 282 mm (11.09 inches) Inner Diameter: 148 mm (5.82 inches) Length: 510 mm (20.08 inches) Filtration Efficiency: 99.9% Efficiency Test Standard: ISO 5011 Features: RadialSeal™ Design: Provides a reliable, leak-resistant seal that remains secure even under heavy vibration. High-Efficiency Cellulose Media: Ensures effective filtration across a wide range of heavy-duty engine applications. Corrosion-Resistant Coated Steel Liners: Support the media during operation and help maximize airflow. Pleatloc™ Feature: Ensures uniform pleat spacing and prevents media from bunching, promoting longer service life. Applications: The P537876 filter is suitable for various heavy-duty equipment and machinery, including: John Deere 850D, 850D LC, 850J, 870 GP, 870G, 872 GP, 872G New Holland TX62, TX63 combines Hitachi 4459543, AT175223 Caterpillar 1525266 Volvo 11110022, 11110280 Sumitomo KSH0933 Case 275809A1, 87013225 Fleetguard AF25437 Baldwin RS3744 Fram CA8621 WIX 42803

Donaldson P551757 – Spin-On Hydraulic Filter The Donaldson P551757 is a high-performance spin-on hydraulic filter designed to protect hydraulic systems by effectively removing contaminants. Key Specifications: Filter Type: Spin-On Media Type: Cellulose Filtration Efficiency: 19 microns (Beta 2) Bypass Valve Setting: 2.1 bar (30 psi) Outer Diameter: 94 mm (3.70 inches) Length: 151 mm (5.96 inches) Thread Size: M24 x 1.5 Gasket Outer Diameter: 71 mm (2.81 inches) Gasket Inner Diameter: 62 mm (2.46 inches) Applications: Commonly used in John Deere, Case, and other heavy-duty machinery requiring hydraulic filtration. Cross-Reference Part Numbers Include: Baldwin BT8415, Fleetguard HF6316, Fram P8552, Hastings HF987, Luber-Finer LFH8728, NAPA 7201, WIX 57201. Benefits: Efficient filtration to protect hydraulic components Durable design for high-pressure environments Bypass valve maintains system pressure under contamination Conclusion: Donaldson P551757 ensures reliable hydraulic system performance and longevity with its efficient filtration and robust construction

Donaldson Hydraulic Filter – Part No. P165659 The Donaldson P165659 is a premium spin-on hydraulic filter from the Duramax® series, engineered for demanding applications such as construction, mining, and heavy equipment. Designed to fit HMK05 and HMK25 filter assemblies, it provides reliable protection by effectively removing contaminants from hydraulic fluid. Key Features: Advanced Filtration Media Utilizes Synteq™ XP™ synthetic media rated Beta 1000 at 11 microns and Beta 2 at 4 microns, ensuring superior contaminant capture and longer service life. Heavy-Duty Construction Features a steel housing and die-cast aluminum top plate to withstand high-pressure hydraulic environments. Leak-Resistant Seal Equipped with a precision O-ring seal between the head and canister to prevent leaks and ensure a secure fit. High Flow Capacity Supports flow rates from 50 to 100 gallons per minute, suitable for high-demand hydraulic systems. Specifications: Outer Diameter: 121 mm (4.76 in) Overall Height: 295 mm (11.63 in) Thread Size: 1 3/4"-12 UN Gasket Outer Diameter: 86 mm (3.39 in) Gasket Inner Diameter: 79 mm (3.11 in) Pressure Rating: Up to 350 psi Operating Temperature Range: –20 °C to 121 °C (–4 °F to 250 °F) Seal Material: Nitrile (Buna-N®) Filter Media: Synteq™ XP™ Synthetic Micron Ratings: 11 µm (Beta 1000) and 4 µm (Beta 2) Flow Rate Range: 50–100 GPM Typical Applications: Hydraulic systems in excavators, loaders, backhoe loaders, and drilling equipment Compatible with equipment from brands like John Deere, Case, New Holland, and Atlas Copco Use Part No. P165659 to ensure consistent hydraulic system cleanliness, extend component life, and maintain reliable performance in tough operational environments.

Donaldson Hydraulic Filter – Part No. P165659 The Donaldson P165659 is a premium spin-on hydraulic filter designed to deliver high-efficiency filtration and long service life in demanding hydraulic systems. Part of the trusted Duramax® series, it is widely used in construction, mining, and industrial equipment. Key Features: High-Efficiency Media Features advanced Synteq™ XP™ synthetic media for superior particle removal. – 11 microns @ Beta 1000 – 4 microns @ Beta 2 Durable Construction Heavy-duty steel housing and cast aluminum base withstand high-pressure systems and vibration. Leak-Proof Seal Precision-engineered O-ring and head-to-canister sealing design for leak resistance and reliable installation. High Flow Rate Capability Supports hydraulic systems with flow demands between 50–100 GPM. Specifications: Outer Diameter: 121 mm Height: 295 mm Thread Size: 1 3/4"-12 UN Gasket OD: 86 mm Gasket ID: 79 mm Seal Material: Nitrile (Buna-N®) Pressure Rating: Up to 350 psi Temperature Range: -20°C to 121°C Filter Media: Synteq™ XP Synthetic Application Range: Compatible with Donaldson assemblies HMK05 and HMK25 Typical Applications: Hydraulic systems in excavators, loaders, backhoe loaders, and drilling equipment Suitable for brands like John Deere, Case, New Holland, and Atlas Copco

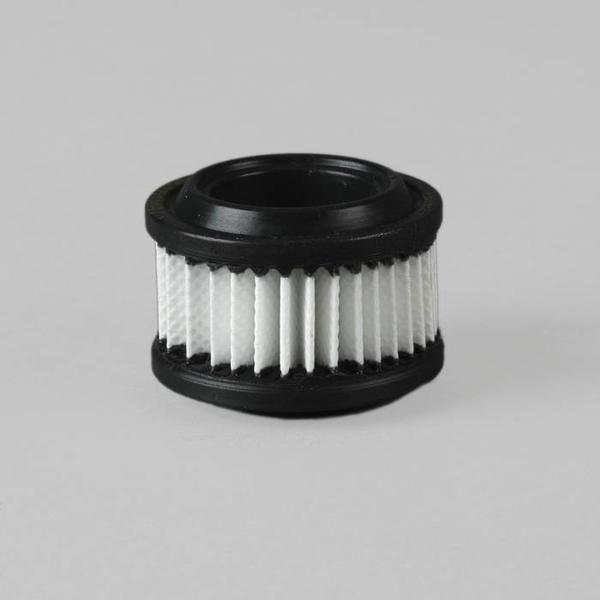

Donaldson P502563 Hydraulic Breather Filter The Donaldson P502563 is a compact and efficient hydraulic breather filter designed to protect hydraulic systems by preventing airborne contaminants from entering reservoirs. Its synthetic media ensures high filtration efficiency, making it suitable for various industrial and heavy-duty applications. 🔧 Key Specifications Part Number: P502563 Filter Type: Hydraulic Breather Media Type: Synthetic Outer Diameter: 54 mm (2.13 inches) Inner Diameter: 31 mm (1.22 inches) Length: 32 mm (1.26 inches) Flow Direction: Outside-In Micron Rating: 10 µm Beta Ratio: Beta 200/9.9, Beta 1000/12.4 ✅ Features & Benefits High Filtration Efficiency: Captures fine airborne particles to maintain hydraulic fluid cleanliness. Durable Construction: Designed to withstand harsh operating conditions. Compact Design: Ideal for systems with limited space. Easy Installation: Simplifies maintenance and replacement processes. 🔄 Cross-Reference & OEM Compatibility The P502563 filter is compatible with various OEM part numbers, including: Volvo: 14500233 Hitachi: 4437838 Hyundai: 31EE02010, 31EE02110 JCB: 335F0621, KRJ3461 John Deere: 4437838 Case: 159702A1, 47587350 Baldwin: PA5316 🚜 Common Applications The P502563 hydraulic breather filter is suitable for various equipment, including Hitachi: HX220B Boom Lift with ISUZU 4BG1 Engine Hyundai: R55-3, R55-7A, R55-9 Excavators with Yanmar 4TNE94 and 4TNV98 Engines Volvo: Equipment requiring part number 14500233 JCB: Machines utilizing KRJ3461 and 335F0621 filters John Deere: Equipment compatible with 4437838 filter

Donaldson P502424 – Fuel Filter Water Separator Cartridge The Donaldson P502424 is a high-efficiency fuel filter and water separator designed for diesel engine systems. It ensures clean fuel delivery by effectively removing contaminants and separating water from fuel, helping extend engine life and reduce downtime. Specifications: Type: Fuel Filter – Water Separator Cartridge Media: Cellulose Outer Diameter: 94.5 mm (3.72 inches) Inner Diameter: 26 mm (1.02 inches) Length: 193 mm (7.60 inches) Efficiency: 99% @ 5 microns Collapse Burst Pressure: 6.9 bar (100 psi) Applications: Commonly used in: Hitachi Excavators (e.g., ZX200-3, ZX240-3, ZX330-3) Isuzu Engines John Deere Equipment JCB and SANY Machines Sumitomo Machinery

Donaldson P502424 – Fuel Filter Water Separator Cartridge The Donaldson P502424 is a fuel filter cartridge designed for efficient water separation and filtration in diesel engines, ensuring better engine protection and performance. Key Specifications: Type: Fuel Filter Water Separator Cartridge Style: Cartridge Length: 193 mm (7.60 inches) Outer Diameter: 94.5 mm (3.72 inches) Inner Diameter: 26 mm (1.02 inches) Media Type: Cellulose Collapse Burst Pressure: 6.9 bar (100 psi) Filtration Efficiency: 99% at 5 microns Applications: Used in heavy-duty equipment like Hitachi excavators, Isuzu engines, John Deere, JCB, SANY, and Sumitomo machinery. Cross-Reference Part Numbers: Includes equivalents like Hitachi 4679981, Isuzu 8980742880, JCB 332G0652, WIX 33740, Baldwin PF7984, Fleetguard FF269, Hastings FF1210, Sakura EF2702. Benefits: High filtration efficiency removes contaminants effectively Durable construction withstands high pressure Water separation feature protects engine from water damage Reliable and consistent filtration performance

Donaldson P171828 – Hydraulic Filter Cartridge The Donaldson P171828 is a high-performance hydraulic filter cartridge designed to protect hydraulic systems in heavy-duty machinery by effectively removing contaminants. Key Specifications: Filter Type: Cartridge Micron Rating: 11 microns at Beta 1000 Media Type: Synthetic Collapse Pressure: 145 psi Outer Diameter: 106 mm (4.17 inches) Inner Diameter: 64 mm (2.52 inches) Length: 465 mm (18.31 inches) Applications: Commonly used in equipment like JCB loaders, John Deere harvesters, Perkins engines, and various heavy machinery hydraulic systems. Cross-Reference Part Numbers Include: Baldwin PT8455MPG, Fleetguard HF7961, JCB 99000090, John Deere F017794, and many others, highlighting its versatility. Benefits: High filtration efficiency for fine particle removal Durable construction for high-pressure environments Synthetic media offers longer service life Compatible with a broad range of equipment

The Donaldson P551026 is a spin-on fuel filter with integrated water separation, designed to protect diesel engines by removing contaminants and separating water from the fuel. Its Twist&Drain™ feature allows for easy water removal, ensuring clean fuel delivery and preventing engine damage. 🔧 Key Specifications Filter Type: Spin-On Fuel Filter with Water Separator Media Type: Cellulose, Meltblown Outer Diameter: 107.3 mm (4.22 inches) Length: 243.6 mm (9.59 inches) Thread Size: 1-14 UN Gasket Outer Diameter: 99 mm (3.90 inches) Gasket Inner Diameter: 90.3 mm (3.56 inches) Efficiency: 99% at 10 microns 95% at emulsified water Efficiency Test Standard: SAE J1985 Operating Pressure: 0–30 psi (with bowl) Temperature Range: -40°F to 250°F (-40°C to 121°C) Fuel Compatibility: #1 or #2 Diesel, Kerosene, Biodiesel up to B20, and JP8 🔄 Cross-Reference & Compatibility The P551026 filter is compatible with several OEM part numbers, including: Baldwin: BF1354SP, BF1354SPS, BF1358O, BF1358SP, BF1359SP, BF1363, BF1383 BOMAG: 5825015 Carquest: 86782 DAEWOO: K1006529 DAF: 1433649 DAIMLER: 4700469, A0004700469 DEUTZ: 2113151 Doosan: K1006529 Fleetguard: FS19737 Hengst: E710WK, H701WK, H710WK, H7121WK10 Hitachi: 263J227001 IVECO: 42554067, 504166113, 504272431 Liebherr: 10032291, 10101998 MAN: 51125017288, 51125030051, 51125030052, 51125036000 MANN & HUMMEL: PL4207X, WK11561 Mercedes-Benz: 9604770003 NAPA: 3782 Volvo: 11110474, 11110668, 11110683 WIX: 33782, 533778, SF10013, WF10013 It is commonly used in equipment from manufacturers like Volvo Construction Equipment, John Deere, and JCB.
