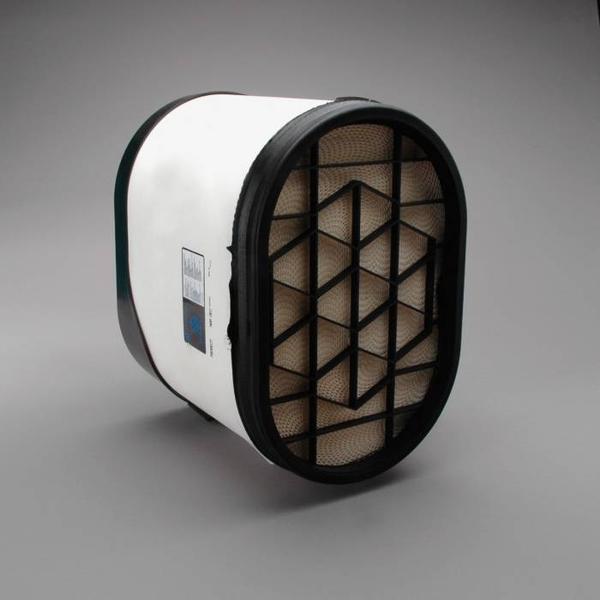

Donaldson P608677 Air Filter The Donaldson P608677 is a primary obround air filter from the PSD Series, designed for heavy-duty applications such as construction and mining equipment. It utilizes PowerCore® technology, offering superior filtration efficiency and durability. Key Features: Filter Type: Primary Air Filter Series: PSD Shape: Obround Media Type: Cellulose Efficiency: 99.95% (ISO 5011 standard) Dimensions: Length: 15.07 inches (382.8 mm) Width: 10.11 inches (256.8 mm) Height: 13.25 inches (336.6 mm) Applications: The P608677 is compatible with various equipment models, including Mack Terrapro and Terex TA400 haul trucks. It is also suitable for use in other heavy-duty vehicles requiring high-efficiency air filtration. Construction and Performance: This filter features Donaldson's PowerCore® technology, which provides a compact, lightweight design without compromising filtration performance. The cellulose media ensures effective removal of airborne contaminants, protecting engine components and extending equipment life. Cross-Reference Part Numbers: The P608677 can replace or is equivalent to several other part numbers, such as: Baldwin CA5789 WIX 49677 MANN CP38001 Mack 57MD321M Case N102191 Caterpillar P608677999140 These cross-references indicate the filter's compatibility with a variety of equipment, making it a versatile choice for maintenance needs.

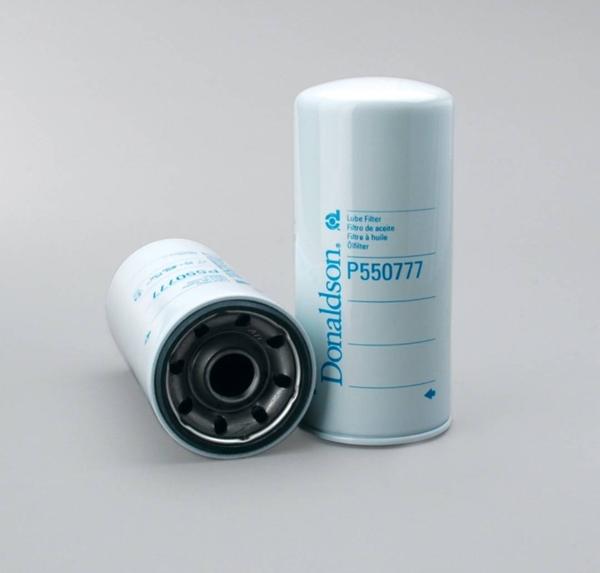

Donaldson P550777 Spin-On Bypass Lube Filter The Donaldson P550777 is a high-performance spin-on bypass lube filter engineered to protect engine systems by efficiently removing contaminants from engine oil. This filter is designed to maintain oil cleanliness, ensuring optimal engine performance and longevity. Key Features: Filter Type: Spin-On Bypass Lube Filter Media Type: Cellulose Thread Size: 1 3/8-16 UN Length: 260 mm (10.24 inches) Outer Diameter: 118 mm (4.65 inches) Gasket Inner Diameter: 98 mm (3.86 inches) Gasket Outer Diameter: 110 mm (4.33 inches) Efficiency Ratings: 50% at 9 microns 99% at 22 microns Collapse Burst Pressure: 10.3 bar (149 psi) Applications: The P550777 is suitable for a wide range of heavy-duty applications, including: Agricultural machinery Construction equipment Industrial engines Heavy-duty It is compatible with various equipment brands and models, ensuring versatility across different machinery.

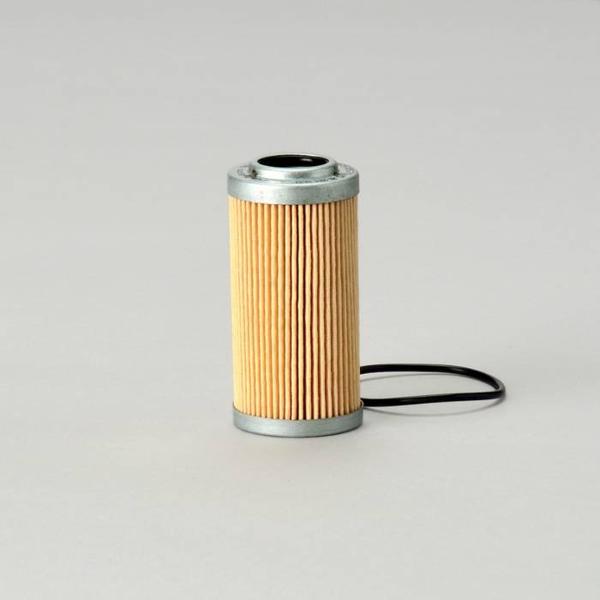

Donaldson P550576 Hydraulic Cartridge Filter The Donaldson P550576 is a hydraulic cartridge filter designed for use in various heavy-duty equipment. It features a cartridge-style construction with an outer diameter of 42.5 mm (1.67 inches), an inner diameter of 21.5 mm (0.85 inches), and a length of 83.5 mm (3.29 inches). The filter has an efficiency rating of 17 microns at Beta 2 and a collapse burst pressure of 15 bar (218 psi) This filter is compatible with several equipment models, including those from CASE, CLARK, DAEWOO, DOOSAN, FIAT, HITACHI, HYUNDAI, JCB, KUBOTA, MASSEY FERGUSON, NISSAN, SUMITOMO, and VOLVO . It is commonly used in hydraulic systems to remove contaminants and protect system components. The P550576 is constructed with high-quality materials to ensure durability and reliable performance in demanding applications. It is suitable for use in various industries, including construction, agriculture, and manufacturing.

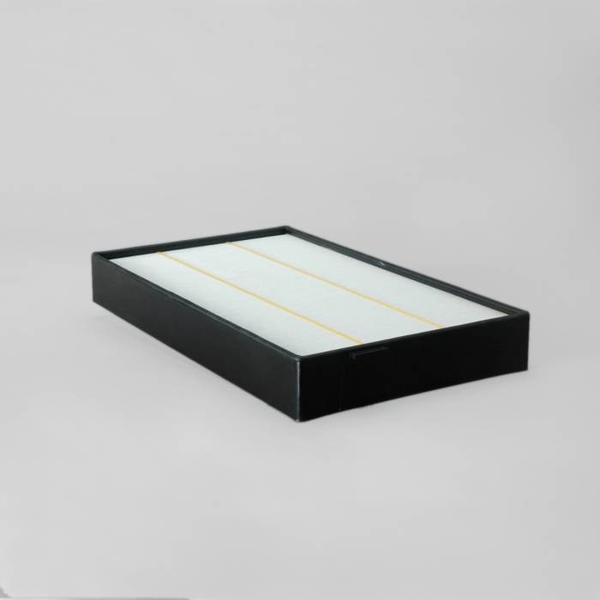

Donaldson Air Filter (Panel Ventilation) – Part No. P500194 The Donaldson P500194 is a high-efficiency panel-style ventilation filter designed to protect vehicle cabins and equipment enclosures by capturing airborne contaminants before they enter critical spaces. Its durable construction and premium media deliver reliable dust and particulate removal, helping operators breathe cleaner air and safeguarding sensitive components. Key Features High-Efficiency Cotton Media Premium cotton-based media provides 99% efficiency (tested to JIS D 1612 standards), effectively removing dust, pollen, and other irritants. Durable Construction Coated steel inner and outer liners support the media structure, maximizing airflow and extending service intervals in harsh operating conditions. Pleatloc™ Design Ensures uniform pleat spacing to prevent media bunching, promoting longer service life and consistent performance throughout the filter’s duty cycle. Direct OEM Replacement Designed as a direct replacement for Volvo part number 11703979, ensuring hassle-free installation and reliable fit. Specifications Length: 435 mm (17.13 in) Width: 123 mm (4.84 in) Height: 44 mm (1.73 in) Efficiency: 99% @ JIS D 1612 Media Material: Cotton (cellulose) Filter Style: Panel (ventilation) Primary Application: Volvo 11703979 replacement Typical Applications Cabin Ventilation for Heavy-Duty Equipment Commonly installed in construction machinery, agricultural tractors, and telehandlers to maintain a clean cabin environment. OEM Replacement for Volvo Equipment Suited for Volvo articulated haulers, excavators, and related models requiring Volvo part 11703979. Use Part No. P500194 for a reliable panel-style cabin or equipment-enclosure filter that combines high particulate removal efficiency with extended service life.

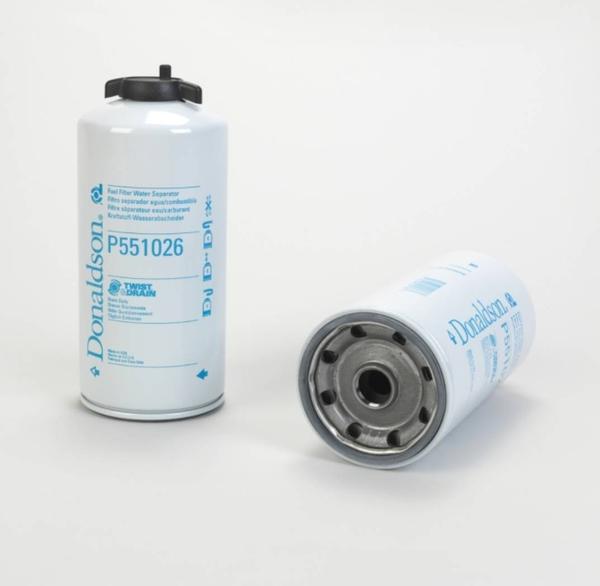

Donaldson Fuel Filter Water Separator – Part No. P551026 The Donaldson P551026 is a spin-on fuel filter and water separator featuring Twist & Drain™ technology, engineered to protect diesel engines by removing solid contaminants and separating water from fuel. Its robust design and high-efficiency media ensure reliable fuel cleanliness in demanding applications. Key Features: Dual-Stage Filtration Combines cellulose and meltblown media to remove particles down to 10 microns with 99% efficiency, while separating 95% of emulsified water to safeguard injectors and pumps. Twist & Drain™ Maintenance Integrated twist-to-drain valve lets you discharge accumulated water without removing the cartridge, simplifying servicing and minimizing fuel spillage. Heavy-Duty Construction Sturdy canister and seal materials withstand vibration and pressure fluctuations for extended service life in heavy-duty environments. Specifications: Outer Diameter: 107.3 mm (4.22 in) Length: 243.6 mm (9.59 in) Thread Size: 1-14 UN Gasket Outer Diameter: 99 mm (3.90 in) Gasket Inner Diameter: 90.3 mm (3.56 in) Filtration Efficiency: 99% @ 10 µm (ISO 19438 / SAE J1985) Emulsified Water Separation: 95% (SAE J1985) Media Type: Cellulose and meltblown Style: Spin-on, Twist & Drain™ Typical Applications: Heavy-Duty Trucks & Buses Ensures clean, dry diesel fuel for on-highway and vocational vehicles. Off-Road & Industrial Equipment Fits construction machinery, agricultural tractors, and mining equipment requiring reliable water separation. OEM Retrofit & Aftermarket Replacement Cross-references many OEM part numbers (for example, Baldwin BF1363, Fleetguard FS19737, Mann+Hummel PL4207X, Mercedes-Benz 9604770003, Volvo 11110474). Use Part No. P551026 to maintain fuel-system integrity, prevent water-related corrosion, and extend component life in demanding diesel applications

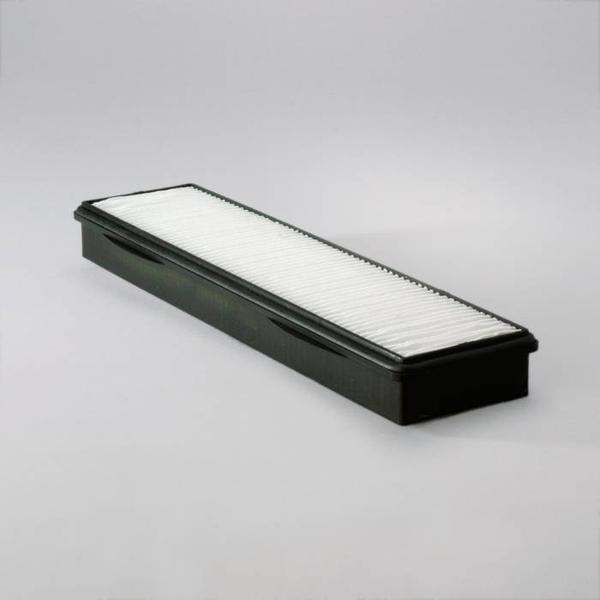

Donaldson Air Filter (Panel Ventilation) – Part No. P500195 The Donaldson P500195 is a high-efficiency panel filter designed to protect vehicle cabins and equipment enclosures by capturing airborne contaminants before they enter critical spaces. Its robust construction and premium media deliver reliable dust and particulate removal, helping operators breathe cleaner air and safeguarding sensitive control components. Key Features: High-Efficiency Cellulose Media Premium cotton-based media provides 99% efficiency (tested to JIS D 1612 standards), effectively removing dust, pollen, and other irritants. Durable, Coated Steel Liners Corrosion-resistant, coated steel inner and outer liners support media structure, maximizing airflow and extending service intervals in harsh operating conditions. Pleatloc™ Design Ensures uniform pleat spacing to prevent media bunching, promoting longer service life and consistent performance throughout the filter’s duty cycle. Direct OEM Fit Built as a direct replacement for many original equipment applications, including Volvo part number 11703980, for hassle-free installation. Specifications: Length: 486 mm (19.13 in) Width: 286 mm (11.26 in) Height: 62 mm (2.44 in) Efficiency: 99% @ JIS D 1612 Media Material: Cotton (cellulose) Filter Style: Panel (ventilation) Typical Applications: Cabin Ventilation for Heavy-Duty Equipment Installed in construction machinery, agricultural tractors, and telehandlers to maintain a clean cabin environment. OEM Replacement for Volvo A, EC, and EW Series Cross-references to Volvo 11703980, making it suitable for Volvo articulated haulers, excavators, and related equipment models. JLG® Boom Lifts and Scissor Lifts Meets OEM specifications for JLG machinery, ensuring reliable ventilation in boom lifts and scissor lifts operating in dusty environments. Use Part No. P500195 whenever you need a dependable panel-style cabin or equipment-enclosure filter that combines high particulate removal efficiency with long service life.

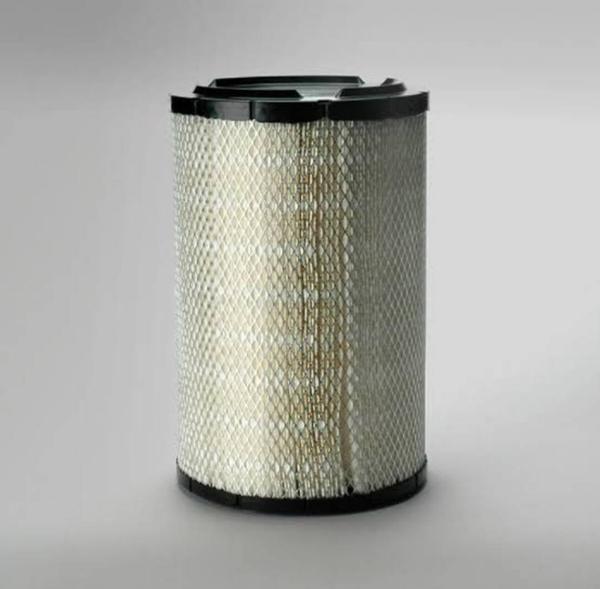

Donaldson Primary Air Filter (RadialSeal™) – Part No. P537876 The Donaldson P537876 is a high-efficiency primary air filter featuring RadialSeal™ technology, engineered to deliver reliable engine protection in demanding heavy-duty applications. Its design ensures a secure, leak-resistant fit under heavy vibration, while advanced media construction offers superior contaminant removal. Key Features: RadialSeal™ Design Provides a dependable, leak-resistant seal that keeps the filter securely in place, even under intense vibration. High-Efficiency Cellulose Media Utilizes premium cellulose filtration media to capture dust, dirt, and other particulates across a wide range of heavy-duty engine conditions. Corrosion-Resistant Steel Liners Coated steel inner and outer liners support the filter media, maintain structural integrity, and maximize airflow throughout the service interval. Pleatloc™ Construction Ensures uniform pleat spacing, preventing media bunching and promoting consistent performance and extended service life. Specifications: Overall Length: 510 mm (20.08 in) Outer Diameter: 282 mm (11.10 in) Inner Diameter: 148 mm (5.83 in) Filter Style: RadialSeal™ Primary Air Filter Media Type: High-efficiency cellulose Efficiency Standard: ISO 5011 test methods (99.9% typical efficiency) Weight: Approximately 3.33 kg (7.34 lb) Typical Applications: Case IH Agriculture Equipment Cross-referenced to Case IH part number 275809A1, making it suitable for various Case-branded tractors, combines, and harvesters. Link Belt Construction Machinery Cross-references include Link Belt part number E3H0146, fitting a range of Link Belt excavators and loaders. Caterpillar & Hitachi Heavy-Duty Engines Commonly used as the primary air intake filter in models where a RadialSeal™–style filter is specified. Use Part No. P537876 whenever a robust, high-flow primary air filter is required to protect diesel engines in rugged agricultural, construction, or industrial environments.

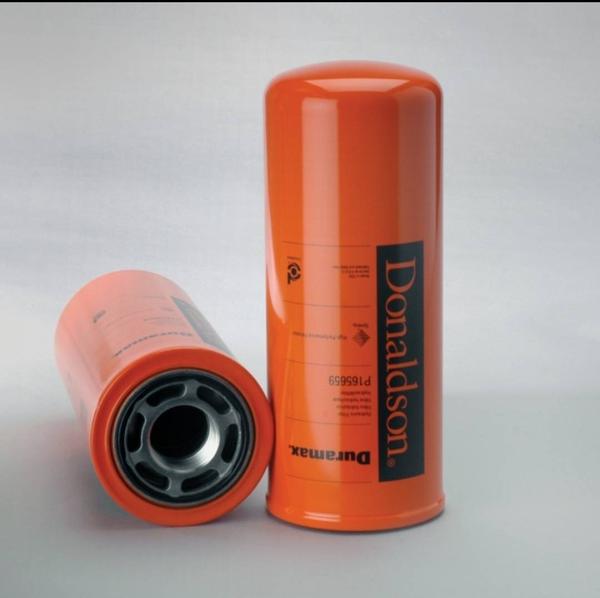

Donaldson Hydraulic Filter – Part No. P165659 The Donaldson P165659 is a premium spin-on hydraulic filter from the Duramax® series, engineered for demanding applications such as construction, mining, and heavy equipment. Designed to fit HMK05 and HMK25 filter assemblies, it provides reliable protection by effectively removing contaminants from hydraulic fluid. Key Features: Advanced Filtration Media Utilizes Synteq™ XP™ synthetic media rated Beta 1000 at 11 microns and Beta 2 at 4 microns, ensuring superior contaminant capture and longer service life. Heavy-Duty Construction Features a steel housing and die-cast aluminum top plate to withstand high-pressure hydraulic environments. Leak-Resistant Seal Equipped with a precision O-ring seal between the head and canister to prevent leaks and ensure a secure fit. High Flow Capacity Supports flow rates from 50 to 100 gallons per minute, suitable for high-demand hydraulic systems. Specifications: Outer Diameter: 121 mm (4.76 in) Overall Height: 295 mm (11.63 in) Thread Size: 1 3/4"-12 UN Gasket Outer Diameter: 86 mm (3.39 in) Gasket Inner Diameter: 79 mm (3.11 in) Pressure Rating: Up to 350 psi Operating Temperature Range: –20 °C to 121 °C (–4 °F to 250 °F) Seal Material: Nitrile (Buna-N®) Filter Media: Synteq™ XP™ Synthetic Micron Ratings: 11 µm (Beta 1000) and 4 µm (Beta 2) Flow Rate Range: 50–100 GPM Typical Applications: Hydraulic systems in excavators, loaders, backhoe loaders, and drilling equipment Compatible with equipment from brands like John Deere, Case, New Holland, and Atlas Copco Use Part No. P165659 to ensure consistent hydraulic system cleanliness, extend component life, and maintain reliable performance in tough operational environments.

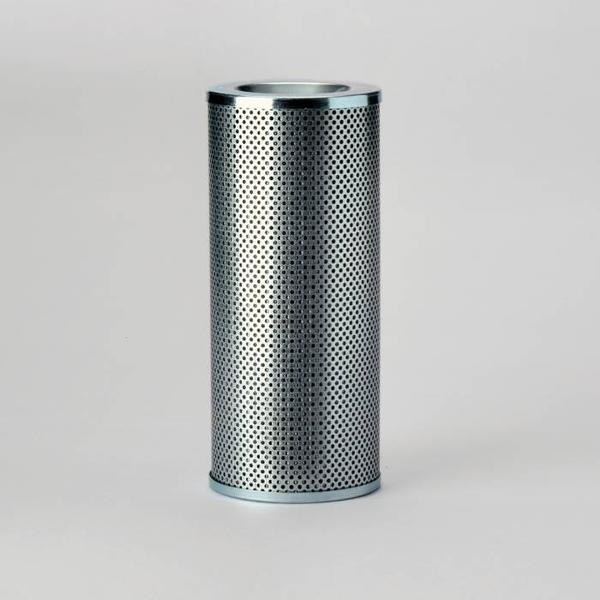

Donaldson Hydraulic Filter Cartridge – Part No. P172465 The Donaldson P172465 is a high-efficiency cartridge-style hydraulic filter engineered to deliver superior contaminant removal and long service life in demanding hydraulic systems, including construction, mining, and industrial equipment. Its advanced synthetic media and robust construction ensure optimal protection for pumps, valves, and actuators. Key Features: Advanced Synthetic Media Provides a Beta 1000 rating at 23 microns, capturing at least 99.9% of particles down to 23 µm in a single pass. High Collapse Pressure Rated to withstand up to 150 psi (10 bar) differential pressure, ensuring reliability under high-pressure operating conditions. Durable Construction Heavy-duty steel canister with a Buna-N® (Nitrile) seal offers resistance to temperature extremes (–45 °F to 225 °F) and protects against media collapse. Drop-In Cartridge Design Simplifies maintenance—remove the old element, insert the new P172465 into the housing, and secure. Reduces service time and minimizes contamination risk during replacement. Specifications: Outer Diameter: 126 mm (4.96 in) Inner Diameter: 92 mm (3.62 in) Overall Length: 290 mm (11.42 in) Media Type: Synthetic Efficiency Rating: Beta 1000 @ 23 µm Collapse Pressure: 150 psi (10 bar) Seal Material: Buna-N® (Nitrile) Typical Applications: OEM and Aftermarket Replacement Direct replacement for Fairey Arlon TXX8A-CC25 series cartridges and compatible with various hydraulic filter housings. Volvo Equipment Cross-references to Volvo part numbers (e.g., 6210359, 6635975, 11026934, 11996150), making it suitable for loaders, excavators, and other heavy machinery. Construction & Mining Machinery Ideal for excavators, bulldozers, loaders, and drilling rigs where robust hydraulic filtration is critical to protect sensitive system components. Use the P172465 cartridge to maintain hydraulic system cleanliness, extend component life, and reduce unplanned downtime in high-demand environments.

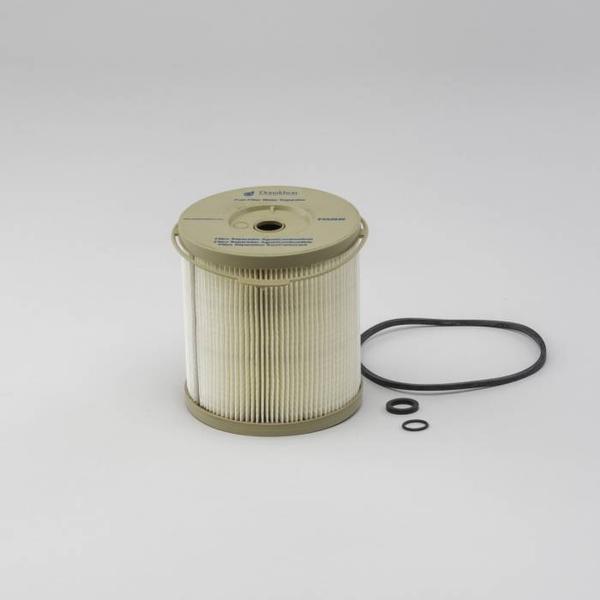

Donaldson Fuel Filter Water Separator – Part No. P552040 The Donaldson P552040 is a spin-on fuel filter and water separator cartridge engineered to safeguard diesel engines by removing water and contaminants from fuel. Designed as a direct replacement for Racor® 2040 series housings, it ensures reliable fuel cleanliness under demanding conditions. Key Features: Dual-Stage Filtration A cellulose media core removes solid particles down to 10 μm while separating 95% of emulsified water to protect injectors and pumps. Integrated Pressure Relief Valve Allows fuel to rise slowly during cold starts to prevent air lock and ensure immediate fuel delivery to the engine. Robust Construction The sturdy canister design withstands vibration and pressure fluctuations in heavy-duty applications for long service life. Easy Cartridge Replacement Simply remove the old cartridge and insert the new P552040 into the Racor 2040™ housing—no tools or complex procedures required. Specifications: Outer Diameter: 108.5 mm (4.27 in) Inner Diameter: 21 mm (0.83 in) Length: 121.4 mm (4.78 in) Filtration Efficiency: 50% @ 10 μm (ISO 4572) Emulsified Water Separation: 95% (SAE J905) Collapse Burst Pressure: 4.1 bar (60 psi) Media Type: Cellulose Style: Spin-on cartridge (water separator) Primary Fitment: Racor 2040™ series (e.g., 2040N10, 2040SM) Typical Applications: Marine Engines: Ensures clean, dry diesel for boats and yachts using Racor 2040™ housings. Commercial Trucks & Buses: Fits diesel truck fuel systems requiring Racor 2040™ filtration. Industrial & Off-Road Equipment: Suitable for generators, forklifts, construction machinery, and other equipment using Racor 2040™ water-separating filters. Use Part No. P552040 to maintain optimal engine performance and prevent fuel-system damage in any Racor 2040™ housing application.

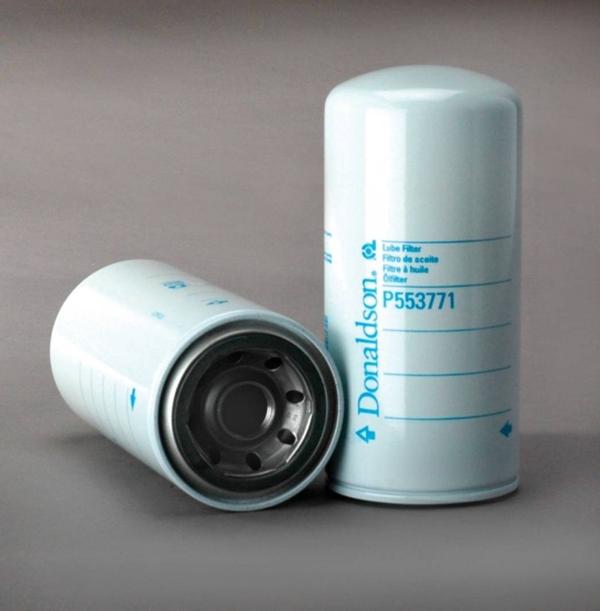

Donaldson Lube Filter – Part No. P553771 The Donaldson P553771 is a premium spin-on full-flow lube filter engineered to provide exceptional engine protection by removing contaminants from engine oil. Designed for demanding environments, this filter helps reduce wear, extend service intervals, and maintain optimal oil flow under all operating conditions. Key Features: Full-Flow Filtration Ensures continuous, unobstructed filtration of engine oil for consistent lubrication. High Filtration Efficiency Captures 99% of particles as small as 40 microns, meeting ISO 4548-12 standards. Robust Construction Withstands a collapse burst pressure of 100 psi (6.9 bar), ensuring reliability under high pressure and vibration. Integrated Bypass Valve Opens at 29 psi (2 bar) and 36 psi (2.5 bar) to maintain oil flow during cold starts or if the filter media becomes clogged. Anti-Drainback Valve Prevents oil from draining out of the filter when the engine is off, minimizing engine wear on startup. Specifications: Outer Diameter: 93 mm (3.66 in) Length: 200 mm (7.87 in) Thread Size: 1-12 UN Gasket Outer Diameter: 71 mm (2.80 in) Gasket Inner Diameter: 61 mm (2.40 in) Filter Media: Cellulose Filtration Efficiency: 99% @ 40 microns Bypass Valve Settings: 29 psi (2 bar) & 36 psi (2.5 bar) Collapse Burst Pressure: 100 psi (6.9 bar) Anti-Drainback Valve: Yes Style: Spin-On Type: Full-Flow Applications: Commonly used in diesel engines for agricultural and construction equipment, this filter fits models such as: Agco 9670 combines Case IH 1455B tractors Deutz DX6.30 series tractors Ideal for any heavy-duty diesel engine requiring reliable oil cleanliness, the P553771 helps protect vital engine components and reduce maintenance costs.

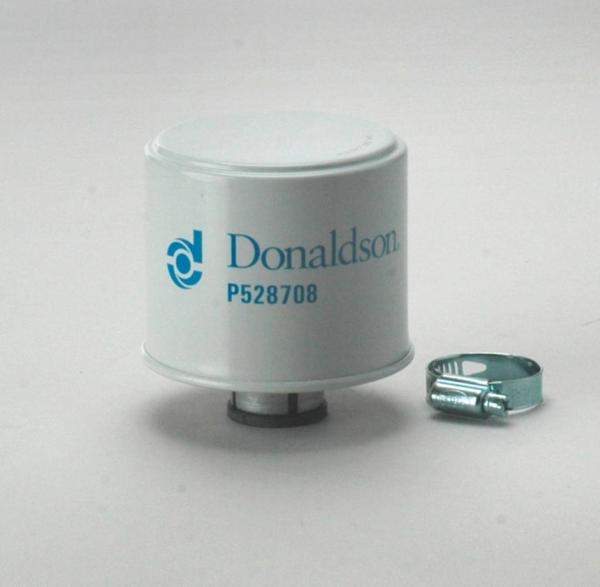

Donaldson Air Breather – Part No. P528708 The Donaldson P528708 Air Breather is engineered to protect hydraulic and fuel reservoirs by filtering incoming air and removing moisture and particulates. Using advanced desiccant and coalescing media, it prevents corrosion, premature wear, and contamination, ensuring reliable system performance. Key Features: Desiccant & Coalescing Media Eliminates ambient humidity and captures dust, dirt, and other airborne particles before they enter storage tanks. Durable Construction Rugged housing resists harsh operating conditions and delivers long service life in industrial and mobile equipment applications. Spin-On Mounting Design Simplifies installation and replacement, providing a secure, leak-free seal for quick maintenance. Specifications: Outer Diameter: 88.5 mm (3.48 in) Overall Length: 92 mm (3.62 in) Gasket Inner Diameter: 24 mm (0.94 in) Gasket Outer Diameter: 32.3 mm (1.27 in) Height: 72 mm (2.83 in) Typical Applications: Hydraulic Reservoirs Prevents water and particulate ingress into hydraulic fluid systems in construction and agricultural equipment. Fuel Tanks Keeps fuel clean and dry in heavy-duty trucks, off-road machinery, and marine engines. OEM Replacement Cross-references to common equipment part numbers for brands like Volvo (e.g., 1082111, 11172907, 1080362, 3944785), making it suitable for various truck and heavy-equipment models (e.g., Volvo F10, F12, F16 series). Use the P528708 Air Breather to maintain reservoir integrity, extend equipment life, and reduce downtime by keeping internal systems free from moisture and contaminants.
